Complete Coil-over Suspension System by Ridetech.
Designed for GM 1988-1998 Chevrolet or GMC C1500 Truck.
Designed to achieve that aggressive stance while keeping modern drive-ability. This kit takes the guess work when purchasing new suspension.
Ride height is approximately 4 inches lower than stock in the front and 6 inches in the rear. Coil-overs add adjustability for rebound and ride height.

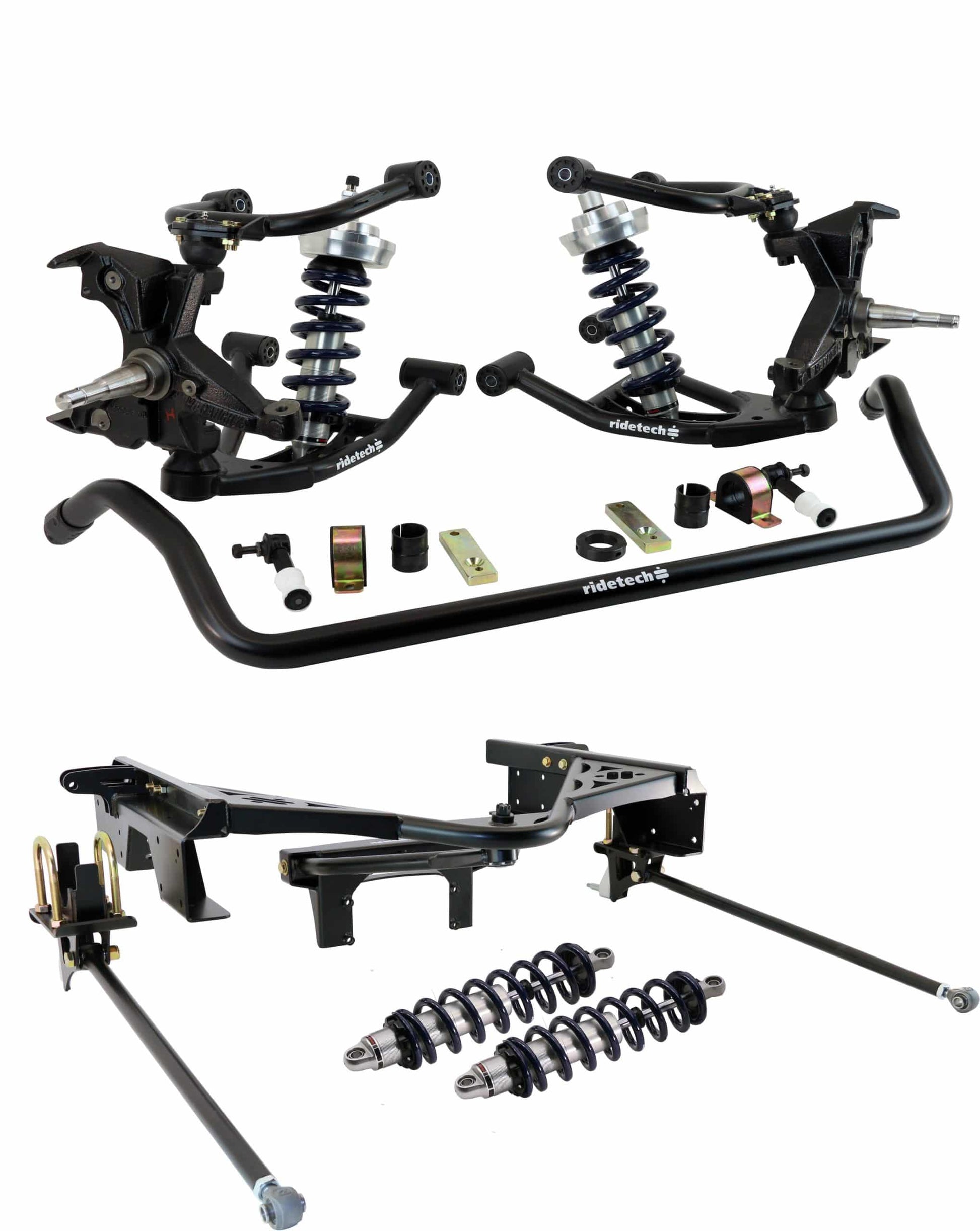

KIT INCLUDES: Front Upper & Lower StrongArm Tubular A-Arms, Front & Rear Handling Quality (HQ) Series Coil-over Shocks, Front Sway Bar, HD Drop Spindles, and Rear Wishbone with Integrated C-Notches
THE DETAILS:

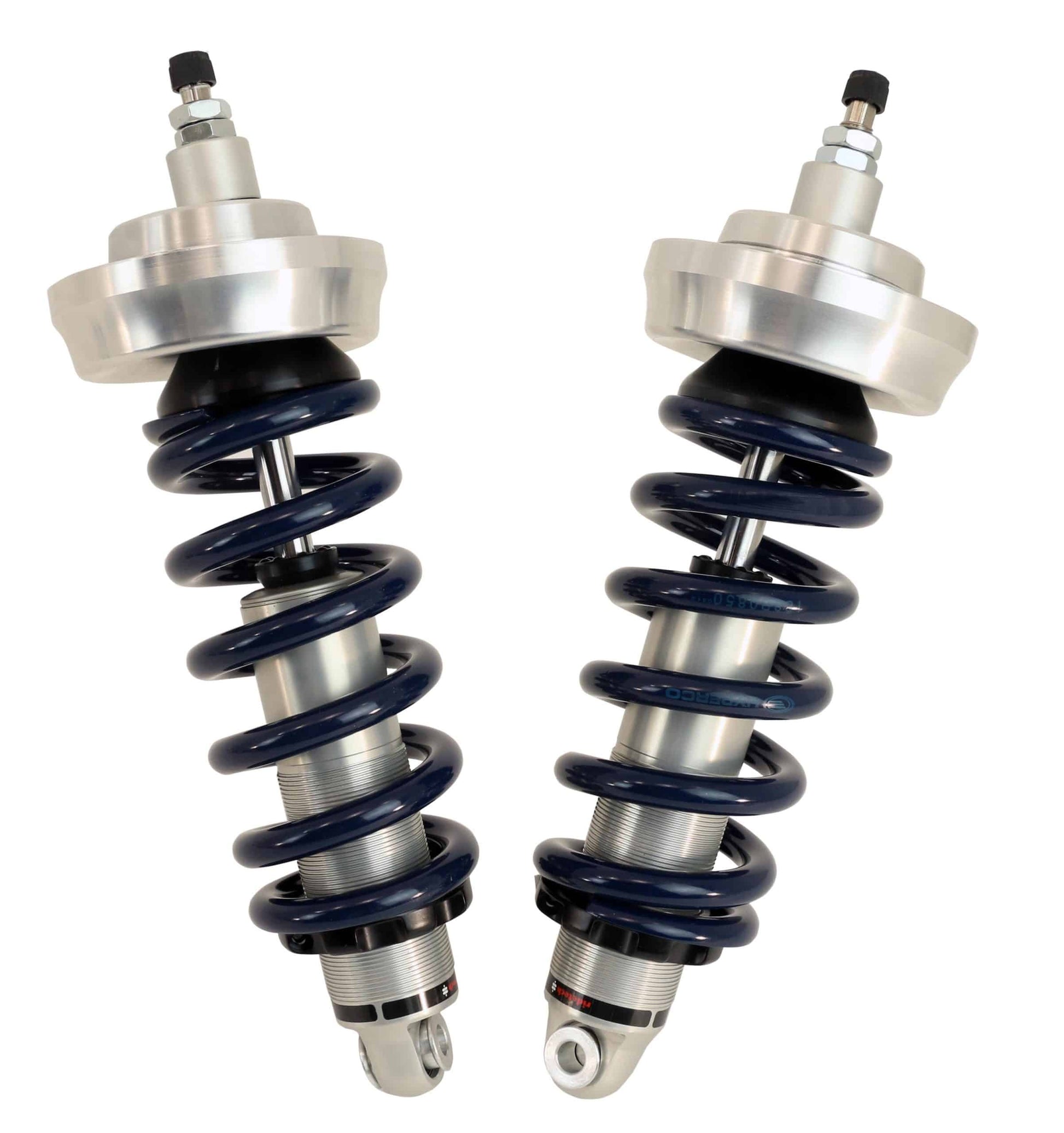

-Front HQ Series Coilovers includes and bolt-on upper shock mounts to allow more ground clearance and maximum suspension travel. The aluminum body shocks are a mono tube design, are rebound adjustable and come with a 1,000,001 Mile Warranty.

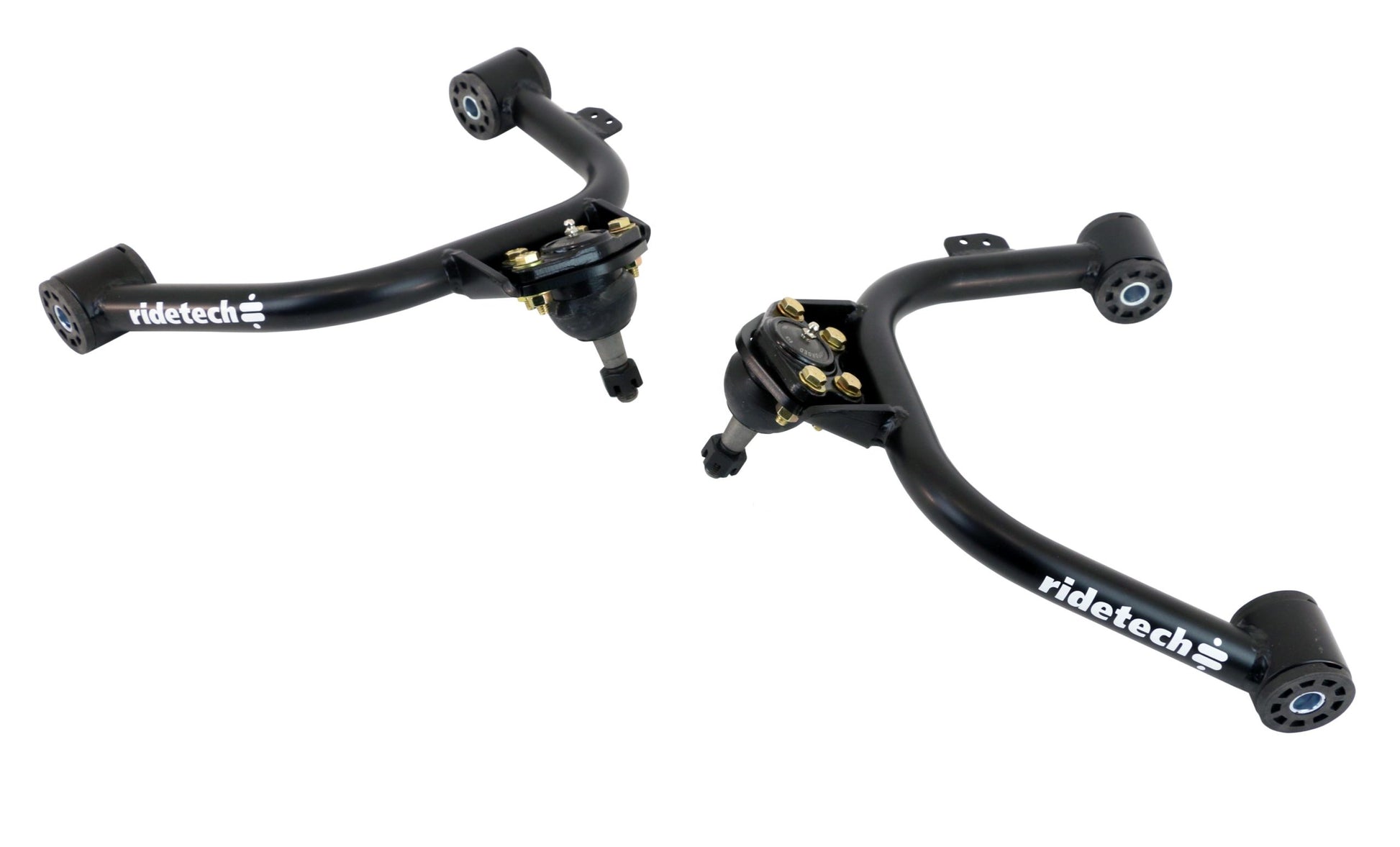

-Upper StrongArm A-arms feature corrected ball joint angles for the lowered ride height and the length has been altered to create more camber adjustment. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction. Also includes integrated brake line mounting brackets.

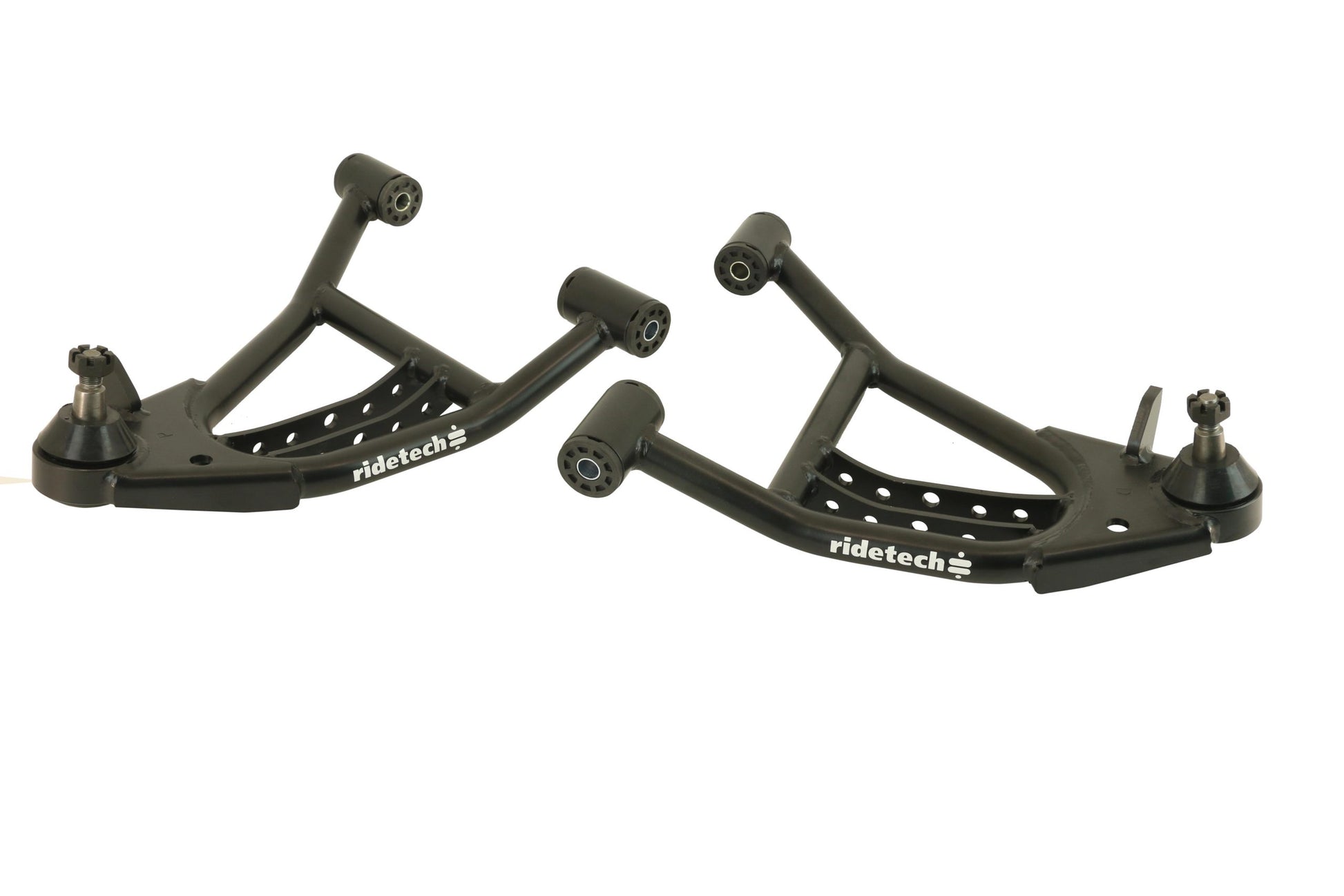

-Lower StrongArm A-arms feature a double sheer lower shock mount for increased strength. We have also dropped the lower shock mount to increase suspension travel and altered the length to create more camber adjustment. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction. Also included are quality ball joints for a completely bolt-on experience.

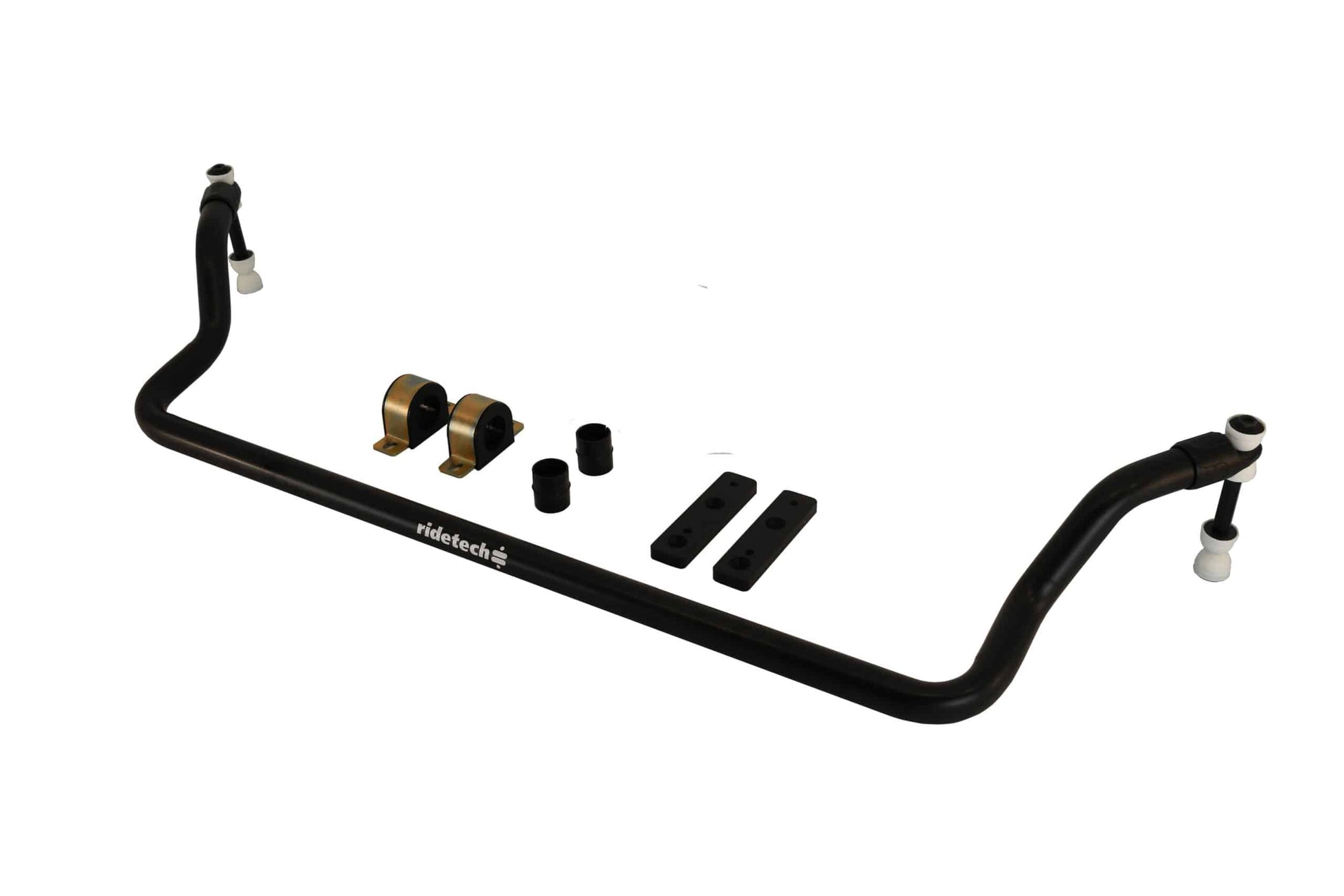

-Front MuscleBar Sway Bar is included to reduce body roll and includes the delrin liners to minimize suspension bind.

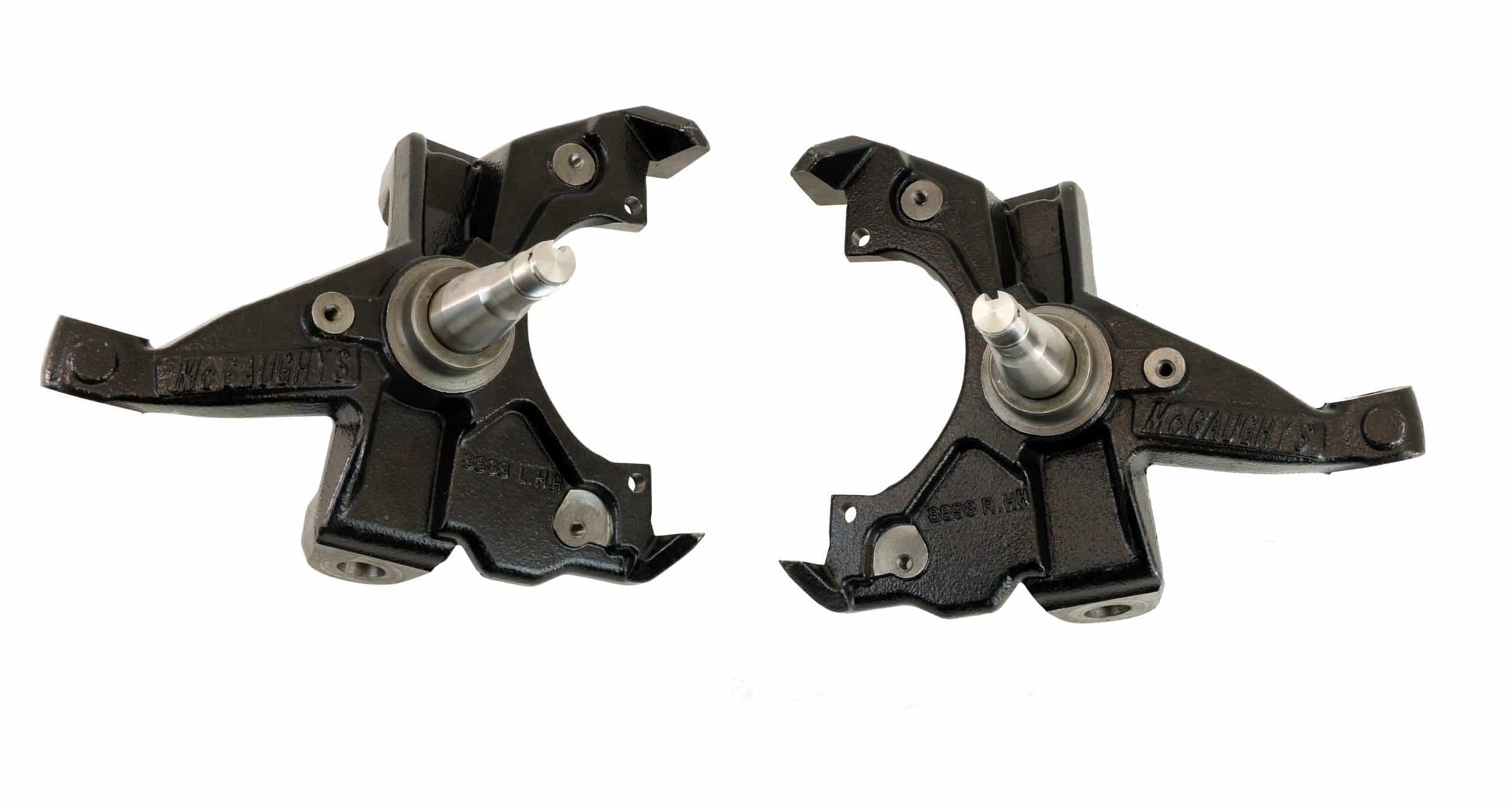

-HD Drop Spindles are used to all the use of a longer stroke shock and improve suspension geometry and bump steer. Increases track width by .200″ per side.

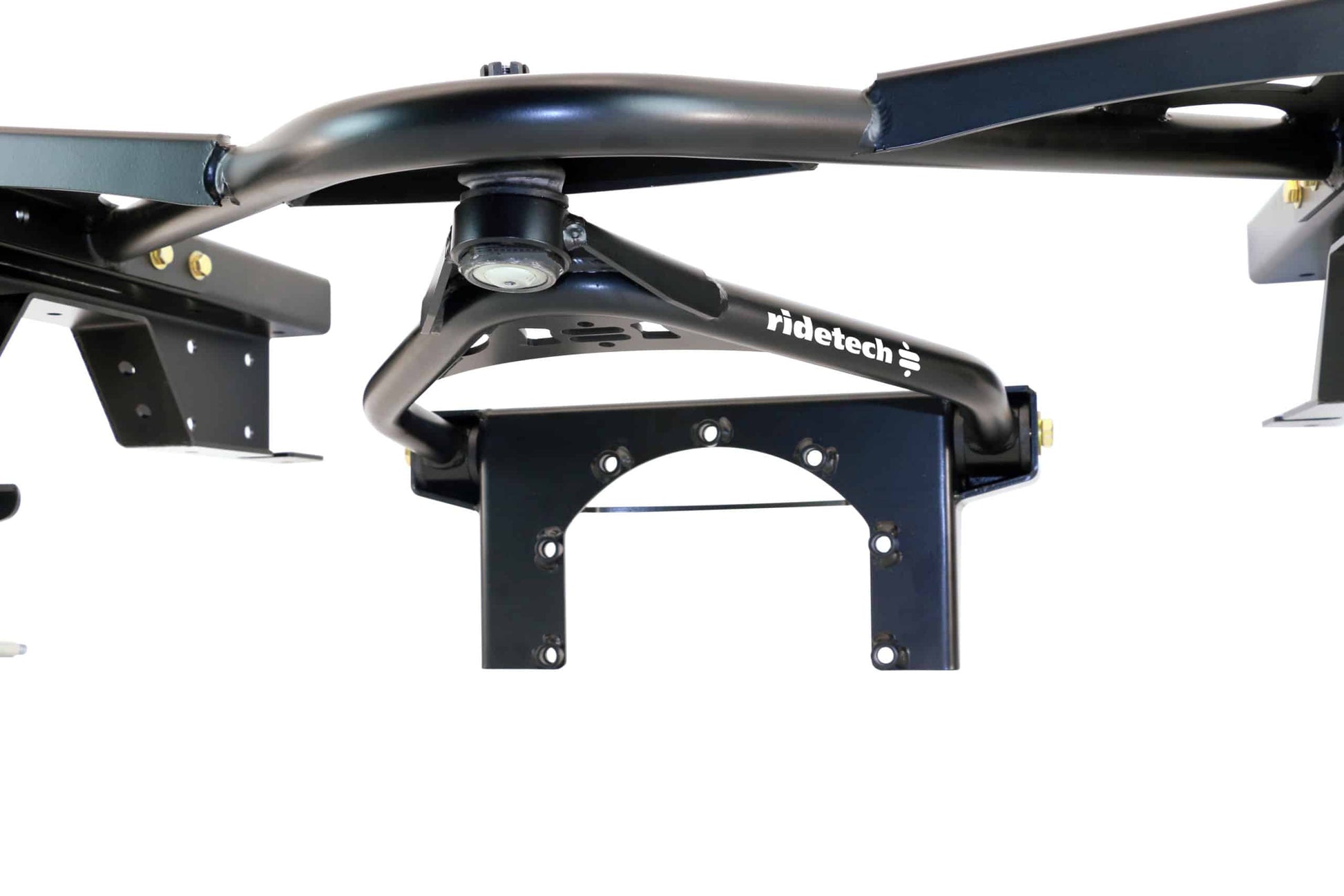

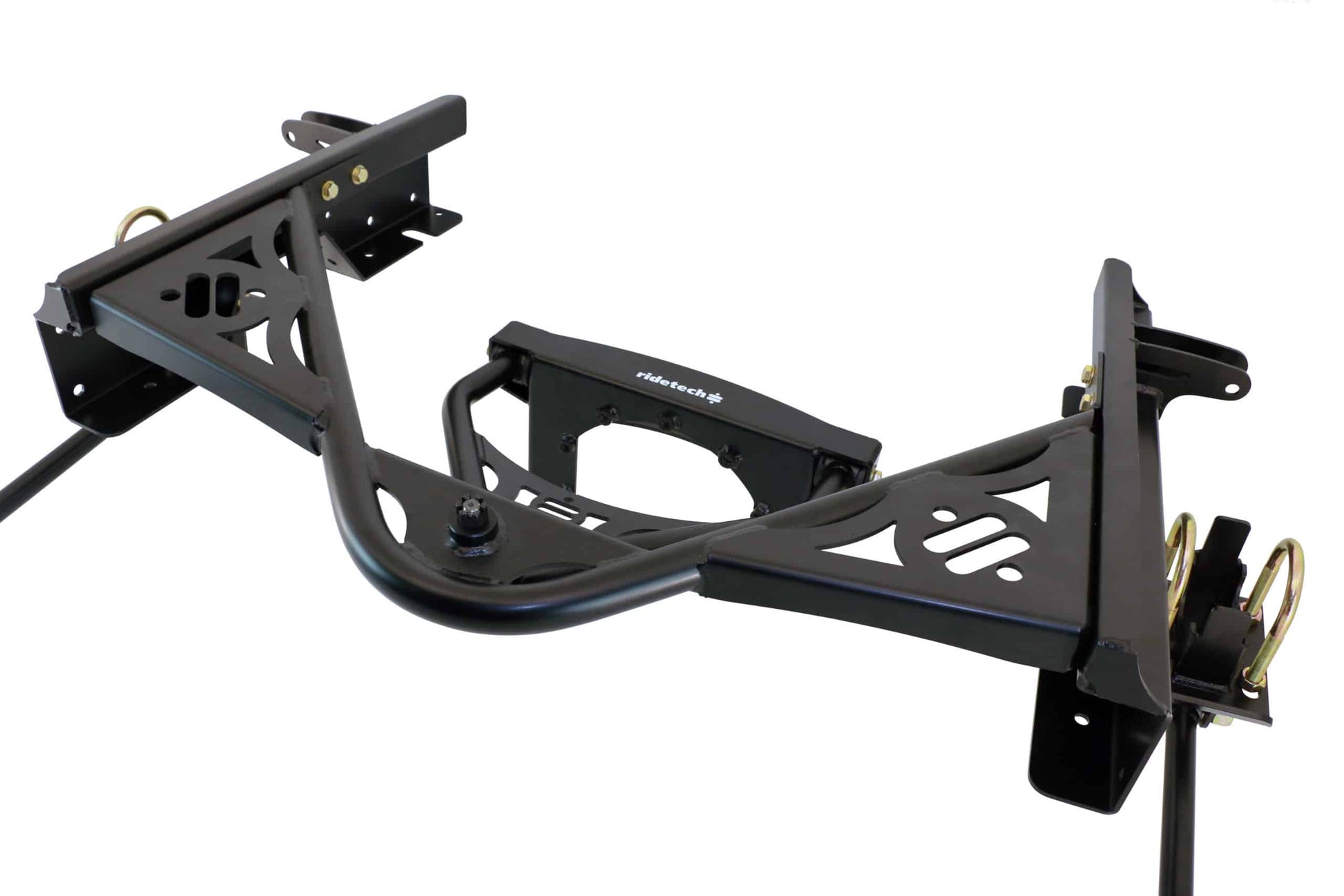

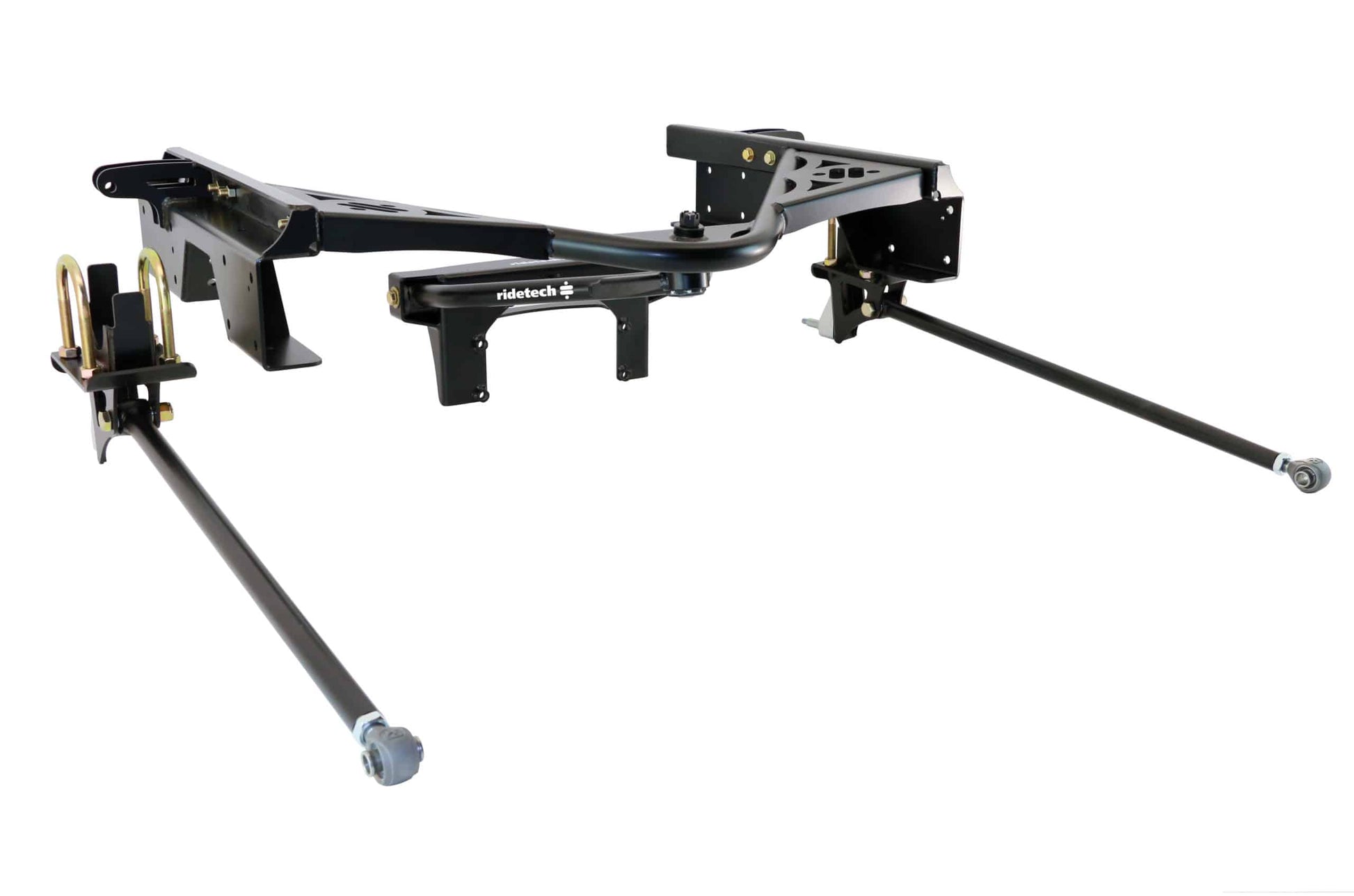

-Bolt-On Wishbone System greatly improves traction, handling and ride quality. Installation does not require any welding or major modifications to the bed floor.
Includes patent-pending R-Joint rod ends to eliminate binding and noise.
Wishbone upper link rather than panhard bar for zero lateral movement during suspension travel allowing extremely tight wheel/tire fitment.
Optimized anti-squat, instant center and pinion angle migration for dramatic improvements in handling and traction.
Bolt-on C-Notch reinforces OEM frame rails and features integrated suspension mounts.
Designed for simple installation with minimal OEM rivet removal.
Compatible with all cab size and bed length configurations

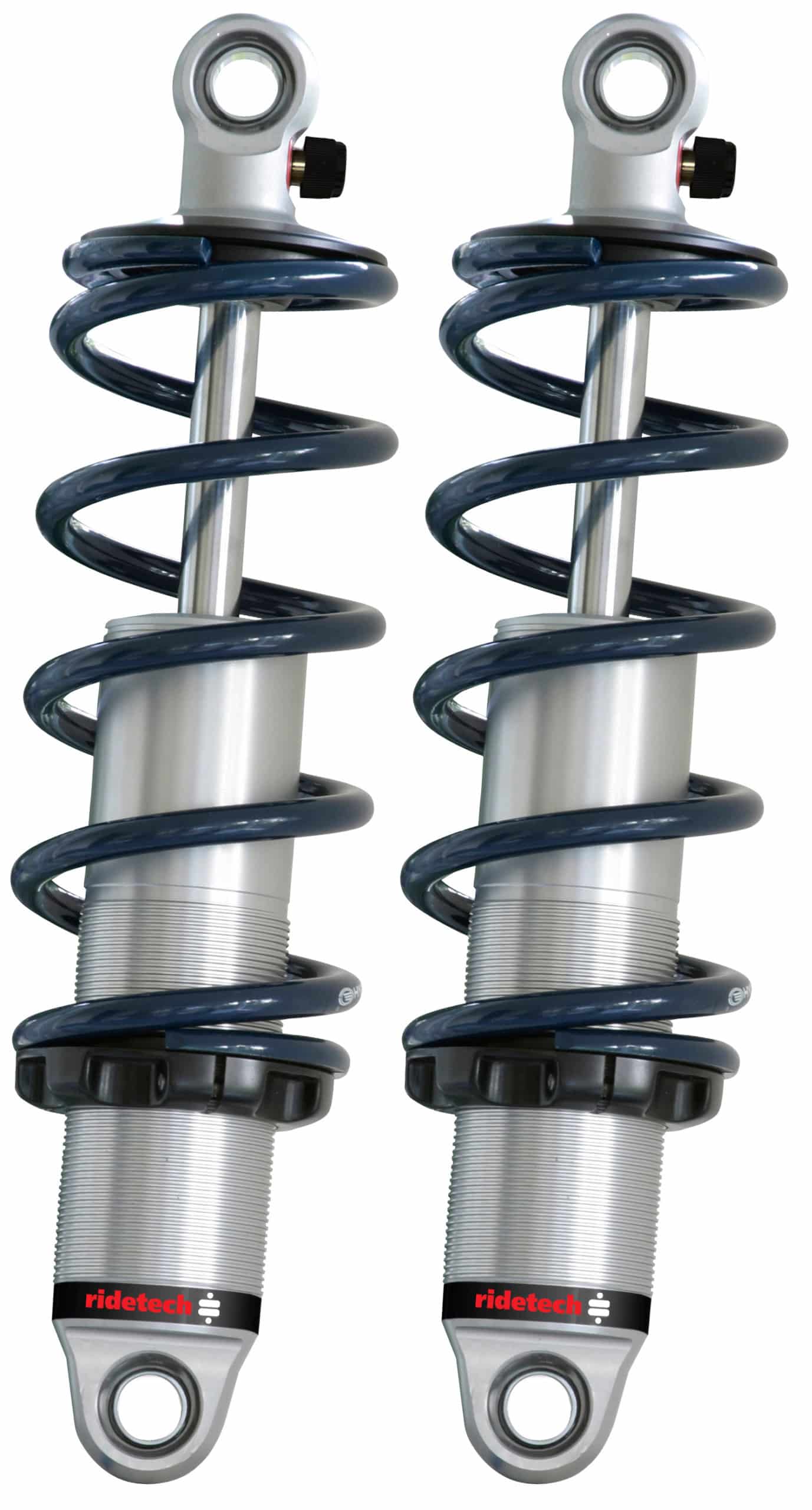

Rear HQ Series Coilovers are a direct bolt on and allows for easy adjustment. The aluminum body shocks are a mono tube design, are rebound adjustable and come with a 1,000,001 Mile Warranty.
INSTALLATION MANUAL LINKS:
HEAVY DUTY SPINDLE- 1.25" ROTOR
LIGHT DUTY SPINDLE- 1" ROTOR
454SS 14 BOLT REAR END
C-NOTCH TEMPLATE
